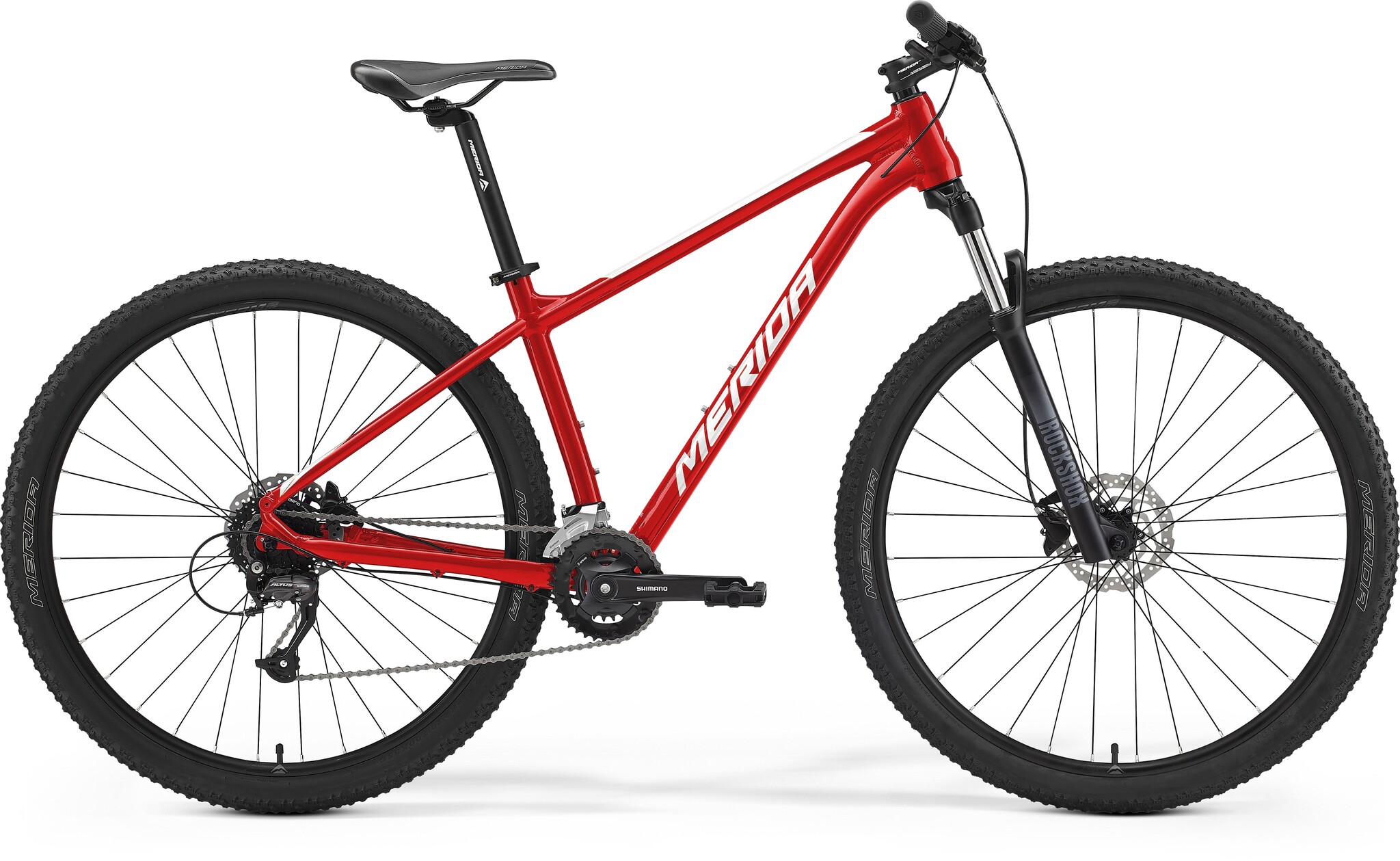

Merida Big Nine 60D Hardtail Mountain Bike Red

Information

Merida's heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot. All Big Nine and Big Seven models use a sophisticated TFS frame featuring the latest technology: full internal cable routing for a clean, neat set up, tapered headtube offering the potential for future upgrades inboard disc brake mounts protect the brake and maximise stopping power As much Shimano componentry as possible has been added to complement the modern frame and enhance reliability. There are a wide range of sizes; Big Nine for taller riders and Big Seven for shorter riders with a healthy overlap between the two. For riders in the middle, riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine, if you are looking for agility choose a Big Seven.

Features

• Frame: TFS III - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake.ÂInternal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 29 x 2.25
• Fork: RockShox Judy TK; Coil; 100mm travel. Lockout; 46mm offset. Max. tyre size: 29 x 2.25
• Headset: M2345
• Stem: CC; aluminium; 31.8mm diameter; 6 degree rise - Stem length: 70mm (S), 80mm (M), 90mm (L), 100mm (XL), 110mm (XXL)
• Handlebar: CC; aluminium; 690mm wide; 15mm rise
• Grip: EC
• Brake Type: Hydraulic disc
• Brake Lever: Power DS-100HT
• Brake Calipers: Front: Power DS-100HT; 2 piston hydraulic disc brake caliper with Shimano RT10; 160mm rotor Rear: Power DS-100HT hydraulic disc brake caliper with Shimano RT10; 160mm rotor
• Tyres: Front: K1080; 29 x 2.2; wire bead Rear: K1080; 29 x 2.2; wire bead
• Wheel Size: 29
• Wheels: Rims: CC; 17mm inner rim width; Aluminium Spokes: Black steel Front Hub: Shimano TX505; 100x9mm; 32 spokes; Center lock Rear Hub: Shimano TX505; 135x9mm; 32 spokes; Center lock
• Speeds: 18
• Front Derailleur: Shimano FD-M2020-TS
• Rear Derailleur: Shimano RD-M370
• Shift Levers: microSHIFT SL-M850
• Chain: KMC M99
• Cassette: Shimano CS-HG200; 11-32 teeth; 9 speed
• Chainset: Shimano MT101-2; 36-22 tooth chainset. Crank length: 175mm (M,L,XL,XXL)
• Bottom Bracket: Shimano BB-UN100
• Pedals: VP Components, VPE-891
• Saddle: Sport comfort
• Seat Post: Comp CC; aluminium; 30.9mm diameter; in-line
