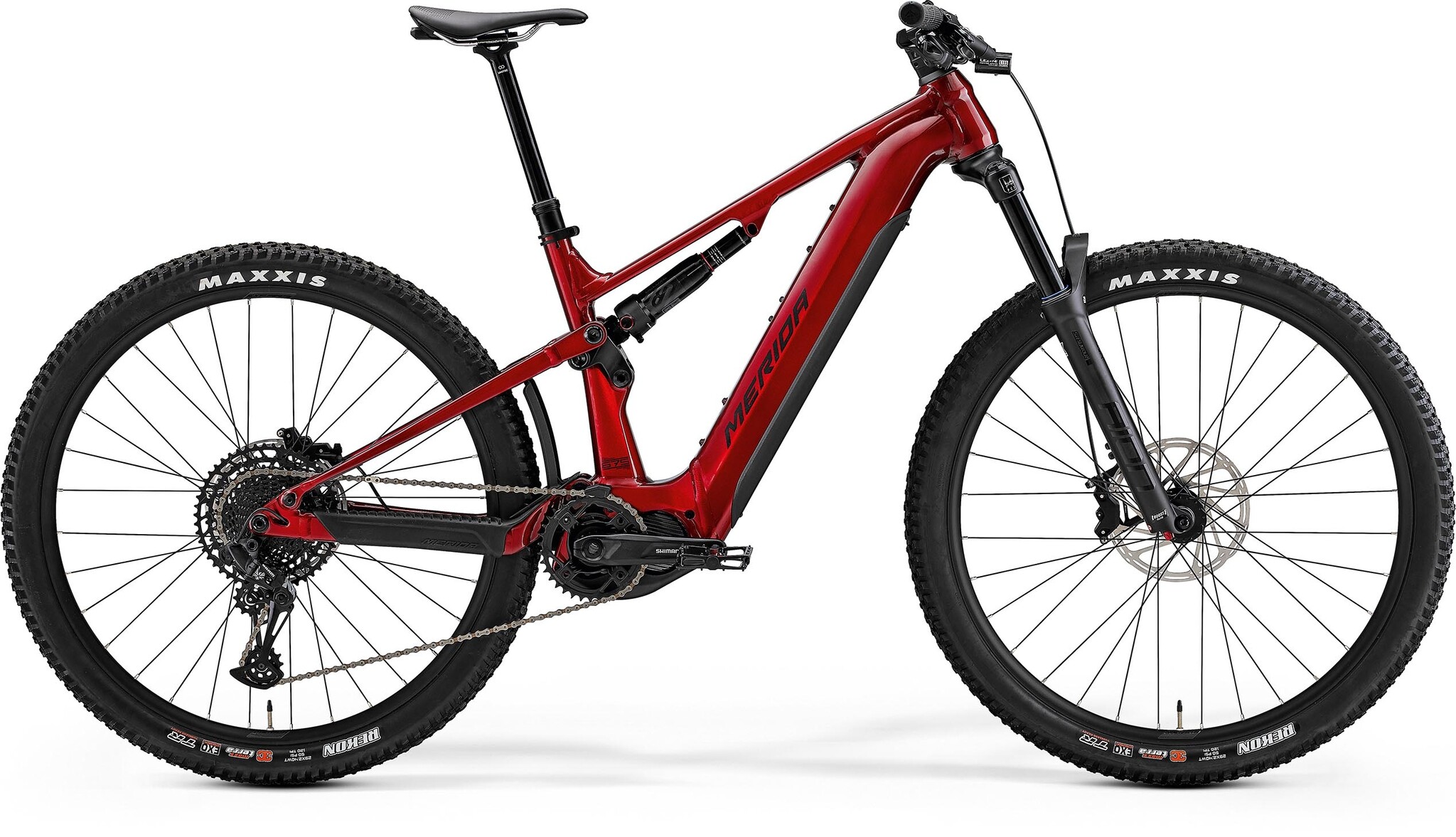

Merida eOne-Forty 675

Information

The new eOne-Forty has a big range in every sense. It's highly versatile, from the trail to the commute, and the impressive 750 Wh battery can be boosted with a 360 Wh range extender that's available separately. The suspension platform and geometry has been influenced by previous generation ebikes and our award-winning trail and enduro range so it has peerless off-road performance and handling that's confident and capable. The suspension offers 143 mm of rear wheel travel and 150 mm up front. Our simplified AGILOMETER sizing system allows you to choose the handling you want thanks to low standover heights. Choose a longer size for off road stability or go shorter to increase agility.

Features

• Frame: Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5 x 2.8
• Rear Shock: RockShox Super Deluxe Select
• Fork: Suntour AION 36X-Boost; 150mm travel; Tapered, 44mm fork offset
• Headset: Acros ICR external neck w/ Blocklock
• Stem: Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
• Handlebar: Expert eTR; 780mm wide; 20mm rise
• Grip: Expert EC
• Brake Type: Hydraulic disc
• Brake Lever: SRAM DB8
• Brake Calipers: Front: SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor Rear: SRAM DB8 4 piston hydraulic disc brake caliper with SRAM CenterLine 200mm rotor
• Tyres: Front: Maxxis Rekon; 29 x 2.4; Kevlar bead, folding; 3C EXO MaxxTerra Rear: Maxxis Rekon; 29 x 2.4; Kevlar bead, folding; TR 3C EXO MaxxTerra
• Wheel Size: 29
• Wheels: Rims: Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); 29 Spokes: Black stainless Front Hub: Novatec SL-ELITE D041SB-B15; 110 x 15mm; 32 spokes; 6 bolt Rear Hub: Novatec SL-Team D462SB-S3S-B12-11S; 148 x 12mm; 32 spokes; 6 bolt with Expert TR axle including removable 6/4mm allen key
• Speeds: 12
• Rear Derailleur: SRAM NX Eagle
• Shift Levers: Limotech RM10 dropper post lever and SRAM NX Eagle 12 speed
• Chain: SRAM SX Eagle
• Cassette: SRAM PG-1210 Eagle; 10-50 teeth; 12 speed
• Chainset: FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide
• Bottom Bracket: Part of Shimano Steps motor
• Pedals: VP Components - VPE-527
• Saddle: Expert SL with V-mount; including minitool
• Seat Post: Expert TR II; 34.9mm diameter; in-line; XS: 125mm - S: 150mm - M/L/XL: 200mm seat post travel
• Motor: Simplo Trend Power Internal Battery Gen 2; 750Wh, Shimano Steps EP801; 85Nm
• Battery Capacity: 750Wh
• eBike Display: Shimano SC-EN600
