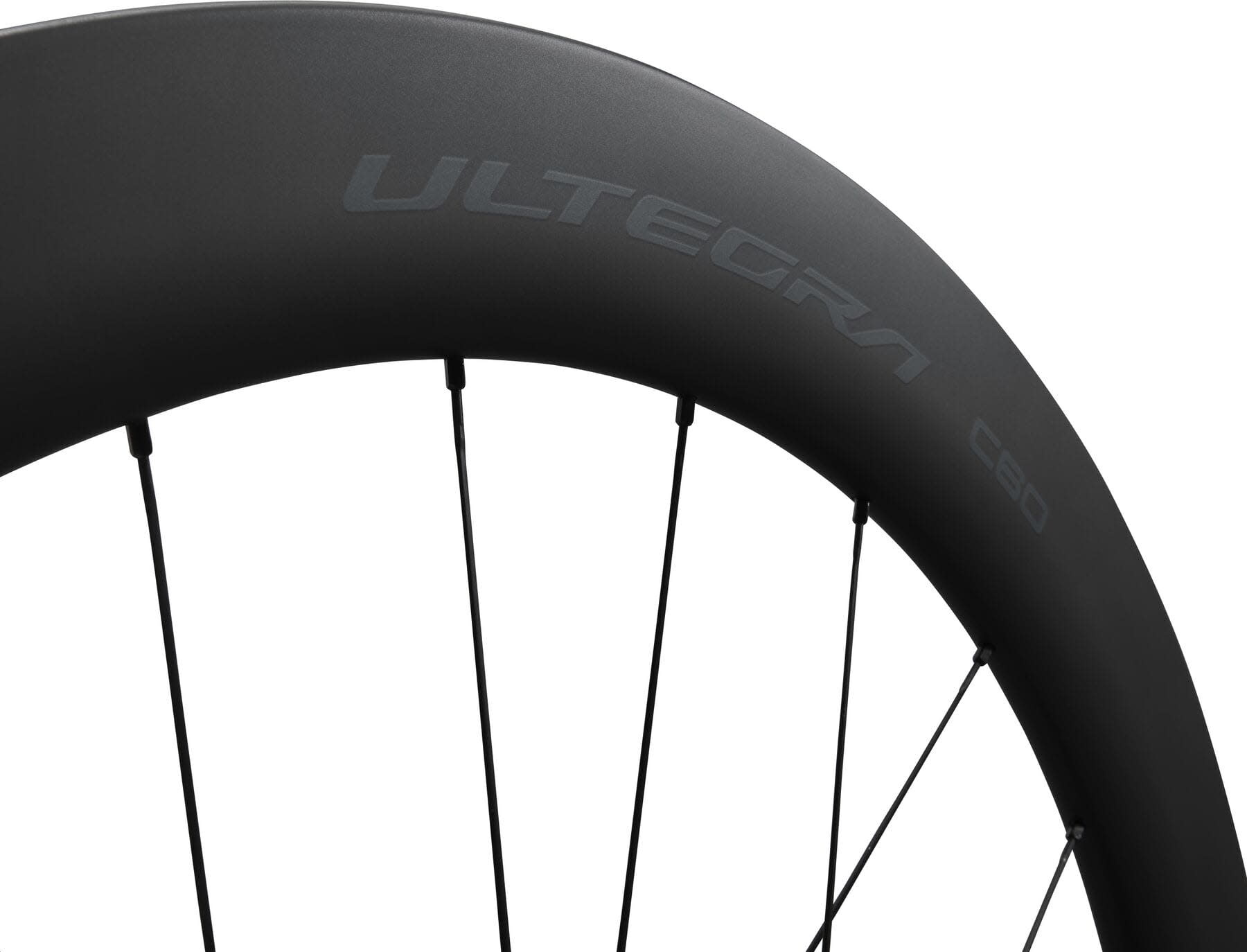

Shimano Shimano WH-R8170-C60-TL Ultegra disc Carbon clincher 60 mm, 700c Wheel

Information

Shimano WH-R8170 TL 60mm Carbon Clincher Disc Wheelset

Designed for ultimate aerodynamic efficiency, the Shimano WH-R8170 TL 60mm carbon clincher disc wheelset is built for sprinters, time trialists, and triathletes. The deep-section full carbon rim enhances speed, increases rigidity, and delivers excellent inertia for maximum power transfer on flat terrain.

Precision-engineered for durability and smooth rolling, the wheels feature stainless steel butted and bladed straight-pull spokes (OPTBAL) for optimal stiffness and compliance. A wide flange spacing improves lateral rigidity, while labyrinth double-contact seals effectively block out water and dirt. Borozon-treated steel bearing races ensure ultra-low friction, and the cold-forged aluminium hub shell with an oversized 7075 alloy axle keeps weight to a minimum.

Compatible with 700C clincher tyres, these wheels support Centre Lock disc brakes. The front wheel fits a 100 x 12mm thru-axle, while the rear accommodates a 142 x 12mm thru-axle with Shimano HG 11/12-speed compatibility.

Key Specifications:

• Rim: Full carbon, 60mm depth, 20-22mm width

• Axle: 100 x 12mm (front), 142 x 12mm (rear)

• Brake Type: Centre Lock disc

• Spokes: Stainless steel butted & bladed straight-pull (OPTBAL)

• Bearings: Borozon-treated steel for low friction

• Hub Material: Cold-forged aluminium with oversized 7075 alloy axle

• Freehub: Shimano HG 11/12-speed compatible (rear)

• Tyre Compatibility: 700C clincher, tubeless-ready (front)

Perfect for road racing, time trials, and triathlons, the WH-R8170 TL 60mm wheelset offers unmatched aerodynamics, speed, and power transfer for high-performance riding.
