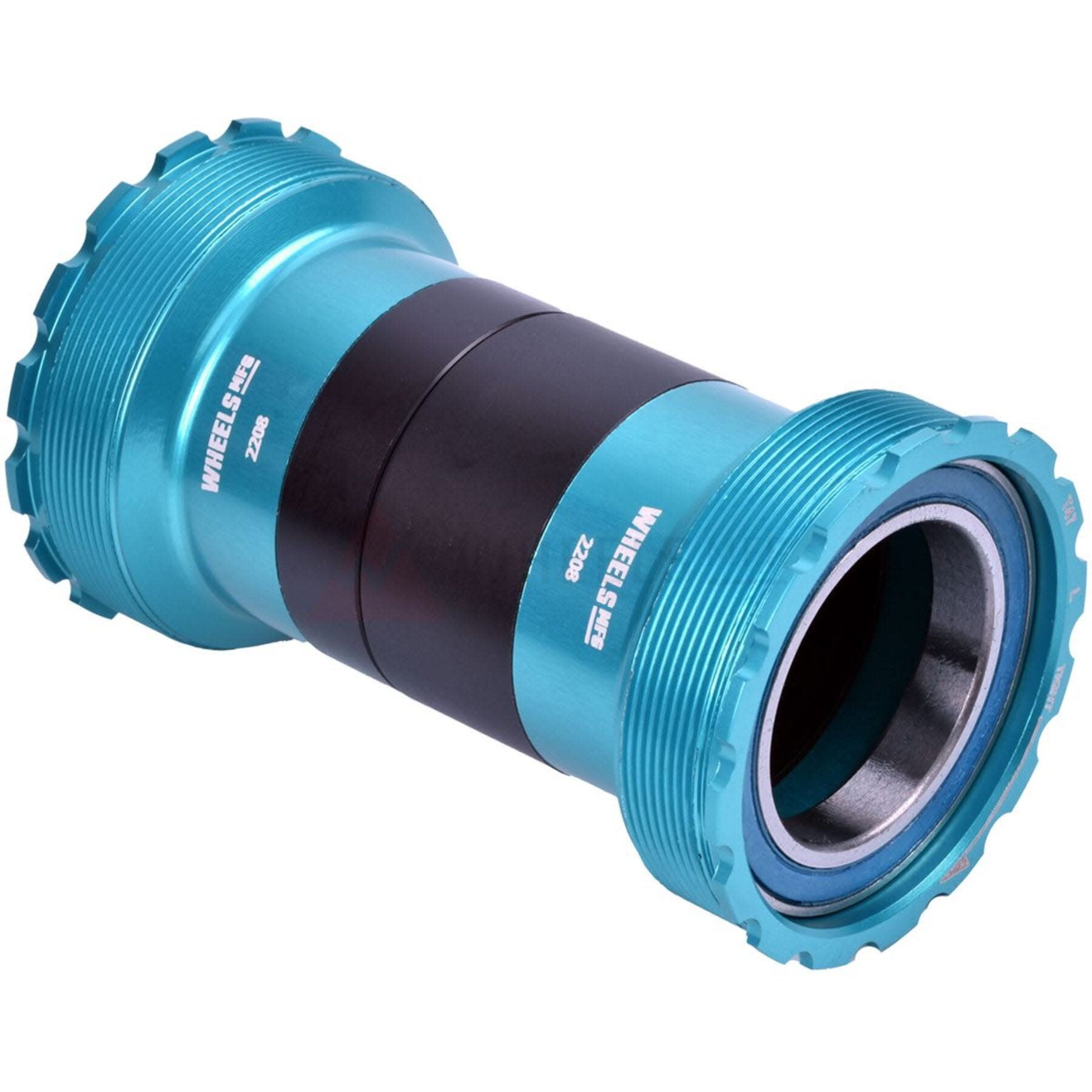

Wheels Manufacturing Bottom Bracket T47 Inboard DUB Teal

Information

• Introducing the new anodized bottom brackets from Wheels Mfg !!
• T47 threaded bottom bracket cups for T47 frames and 29mm spindle diameter SRAM DUB cranks
• Cups have internal bearings, and can be used in bottom bracket shells with widths from 68mm to 132mm
• Machined Aluminium cups thread together directly into a T47 bottom bracket shell
• Bearings are easily serviced or replaced
• Includes sleeve to fit between cups for added protection from dirt and grime, and also keeps your internal wires and hoses from rubottom bracketing on the crank spindle
• T47 cups are similar to standard BSA threaded cups in that the drive side cup is left-hand thread and the non-drive side cup is right-hand thread
• Use a quality grease when installing in steel or aluminium bottom bracket shells, and an anti-seize compound compatible with titanium bottom bracket shells

• Bearings: Enduro ABEC-3
• Bottom Bracket/Frame Interface: T47
• Bottom Bracket Shell Width (mm): 86mm - 121mm
• Bottom Bracket Shell I.D.: 47x1.0mm Threaded
• Crank Spindle Diameter: 29mm
• Over Bearing Width: 68mm in 68mm wide shell
• Tool Pattern: 48.5mm x 16-notch
• Weight: 97g
